Name: Automatic Syringe Screen Printing Machine for Manufacturing Plants 220V Voltage
SKU: 0

ZongKai



Location: Home > Medical product production line > Automatic Syringe Screen Printing Machine for Manufacturing Plants 220V Voltage

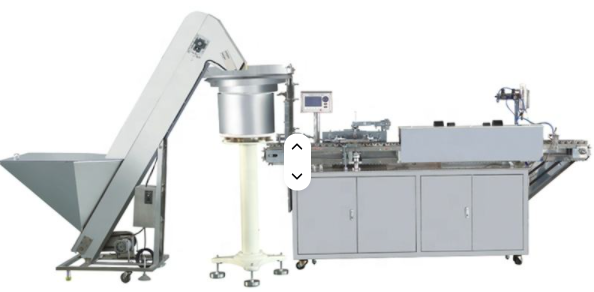

Automatic Syringe Screen Printing Machine for Manufacturing Plants 220V Voltage

Email

WhatsApp

Brief Introduction
Interval the device is able to carry out continuous printing, chain drive, double loop wind electric heating dry;
with cam splitter product transmission is smooth, precise positioning; stainless steel equipment enclosure, be able to
effectively reduce the contamination of the product, able to produce 1-20ml syringe, production rate of 120/min.

Production SPEC	1ml	2-10ml	20ml	30-50ml
Production speed	110pcs/min	120pcs/min	110pcs/min	90pcs/min
Dimension	4500×1000×160	4500×1000×160	4500×1000×160	4500×1000×160
Weight	500kg	500kg	500kg	500kg
Power supply&Power	AC220v/ 3KW	AC220v/ 3KW	AC220v/ 3KW	AC220v/ 3KW
Compressed air flow	0.02m3/min	0.02m3/min	0.02m3/min	0.03m3/min

Features
Vibration-advised for the hopper
Control system adopts computer touch screen
The regulator injector spray silicide
High effeicent, low electricity consume, lower price.

Specification

No.	Description	Function
1	Injection molding Machine	For injecting the syringe barrel and plunger and other inject items
2	Syringe Moulds	Fit with the injection machine for the syringe production
3	Syringe barrel printer	Printing the graduation line on the barrel and spray the oil into the barrel
4	Needle auto assembly machine	To assembly the needle
5	Syringe auto assembly machine	To assembly all the parts together so as to get the finish syringe automatically
6	Syringe blister pack machine	Pack the syringe in blister automatically
7	Polybag seal machine	Seal the syringe in polybag
8	ETO sterile machine	Sterile the finished products
